Product Introduction

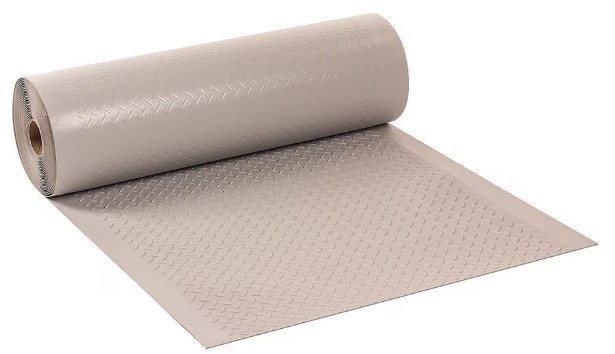

TPO pedestrian walkway pad is a high-quality TPO main raw material that is made by extrusion processing, adding with pigments, fillers and various additives. It has advantages such as good aging resistance, high strength and high elongation. The surface pattern is deep, effectively increasing friction and preventing slipping. Adopting hot air welding construction and effectively welding with TPO base layer, its base adhesion is strong and with effective wind resistance
Product specifications and marks
Thickness: 3.4mm
Length: 10m
Width: 0.865m
Product mark: TPO pedestrian walkway board 3.4mm/10m*0.865m
Use
Mainly suitable for laying machine maintenance walkway boards on TPO waterproof roofing membrane,
with colors of white and grey
Material properties
| Item | Description |
| Length (m) |
≥14.99（10*99.5） |
| Width (m) | ≥0.86（0.865*99.5%） |
| Thickness, allowable deviation (%) | -5, +10 |
| Appearance | No cracks, holes, bonds, bubbles
and scars |
| Tensile (MPa) | ≥12 |
| Break elongation (% | ≥500 |
| Heat treatment size change rate (%) | ≤2.0 |
| Low temperature bending | No cracks at -40℃ |
| Impermeability | 0.3MPa, 120 minutes impermeable |
| Impact resistance performance | 0.5kg·m, no water seepage |
| Right-angle tearing strength (N/mm) | ≥60 |
